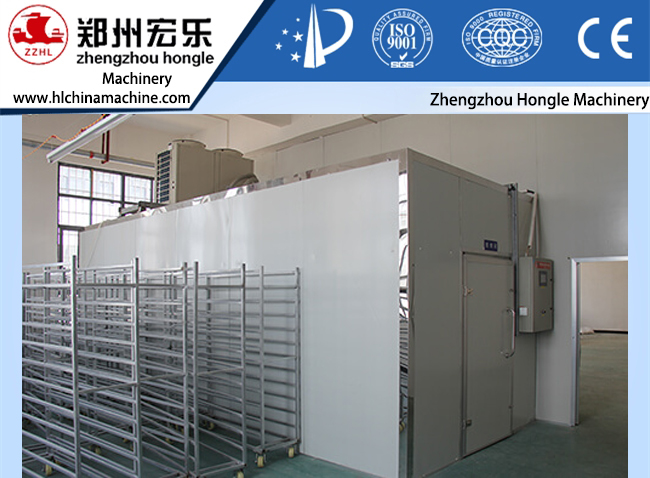

application of heat pump fruit food dryer
It is suitable for drying materials with high moisture content, long drying period and low drying temperature.
Features of heat pump fruit dryer, food dryer, fruit dryer
1)It is suitable for drying materials with high moisture content, long drying period and low drying temperature.
2Human-machine interface operation, PLC control, temperature and humidity control, intelligent dehumidification, running state display, fault detection, etc.
3)High degree of intelligence, simple operation, can be based on the drying process of different materials set up a number of programs, one machine multi-purpose.
4)Hot air circulation adopts our patented technology, two-ways circulation, heat multi-times reuse, drying efficiency is high, uniformity is good.
5)Equipment selection industry is optimal, running stable, durable.
6)According to the workshop situation reasonable layout, beautiful, generous, easy to clean.

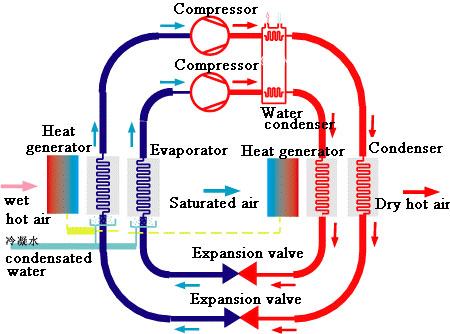

Working principle of equipment
|
Model
|
ZL-KNC-12P-12A
|
ZL-KNC-18P-12A
|
ZL-KNC-18P-15A
|
ZL-KNC-24P-15A
|
ZL-KNC-72P-36A
|
|
Voltage/frequency
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
380V/50Hz
|
|
Rated power of heat pump (Kw)
|
11
|
16.5
|
16.5
|
22
|
66
|
|
Rated current(A)
|
22
|
33
|
33
|
44
|
132
|
|
Heating capacity(Kw)
|
38.5
|
57
|
57
|
77
|
231
|
|
Rated power of deputy heater(Kw)
|
30
|
30
|
30
|
40
|
50
|
|
Rated current of deputy heater(A)
|
60
|
60
|
60
|
80
|
100
|
|
heating capacity(Kw)
|
30
|
30
|
30
|
40
|
50
|
|
Dehumidification capacity(L/H)
|
30
|
45
|
45
|
60
|
180
|
|
Max. temperature of drying room(℃)
|
75
|
75
|
75
|
75
|
75
|
|
Ambient temperature range(℃)
|
0～43
|
0～43
|
0～43
|
0～43
|
0～43
|
|
Electric shock Rating (class)
|
1
|
1
|
1
|
1
|
1
|
|
Max.pressure at expulsion(MPa)
|
≤2.8
|
≤2.8
|
≤2.8
|
≤2.8
|
≤2.8
|
|
Noise[dB(A)]
|
≤75
|
≤75
|
≤75
|
≤75
|
≤75
|
|
Air volume of fan (m3/h)
|
36000
(in heat pump)
|
36000
(in heat pump)
|
72000
(in drying room)
|
72000
(in drying room)
|
160000
(in drying room)
|
|
Weight(kg)
|
1000
|
1400
|
1400
|
1800
|
5000
|
|
Drying chamber material
|
75 mm thickness high density PU insulation material, both sides are 1.2 mm thickness mild steel plate with painting
|
75 mm thickness high density PU insulation material, both sides are 1.2 mm thickness mild steel plate with painting
|
75 mm thickness high density PU insulation material, both sides are 1.2 mm thickness mild steel plate with painting
|
75 mm thickness high density PU insulation material, both sides are 1.2 mm thickness mild steel plate with painting
|
75 mm thickness high density PU insulation material, both sides are 1.2 mm thickness mild steel plate with painting
|
|
Overall dimension(mm)
|
7000×2830×2795/4295
|
7000×2830×2795/4295
|
9000×2830×2795/4295
|
9000×2830×2795/4295
|
22000×2830×4500
|
|
Air direction model
|
One direction, horizontal air flow
|
One direction, horizontal air flow
|
two direction alternate, horizontal air flow
|
two direction alternate, horizontal air flow
|
two direction alternate, horizontal air flow
|
|
Trolley number
|
12 trolley
|
12 trolley
|
15 trolley
|
15 trolley
|
36 trolley
|
|
Loading area (SQM)
|
180
|
180
|
225
|
225
|
540
|
