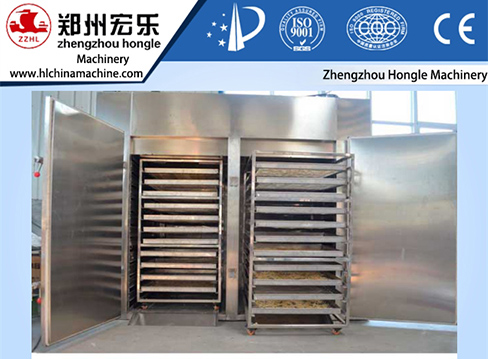

Hot air fruit and vegetable dryer food drying machine
application of hot air fruit and vegetable dryer food drying machine
This machine is widely used in food, pharmaceutical, chemical field to reach heating, drying, dehydrating targets.
Application: pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other materials and products;
Functions: heat curing, drying, dehydration.
features of hot air fruit and vegetable dryer food drying machine
1. Heating sources: water, steam, electricity, gas, LPG, diesel oil, hot air stove etc.
2.Working temperature:
Water or steam heating: 50~140℃，Max.150℃；
Hot air stove, diesel oil: 50~300℃
Electricity: 50~450℃；
3. Temperature-auto control
4.The parts in the machine can be install and loose easily and quickly, easy for cleaning.
5.Meet ‘GMP’ standard.

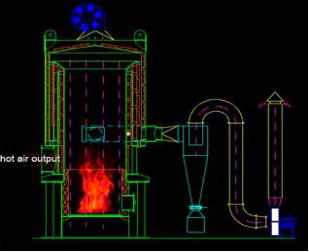

working principle of hot air fruit and vegetable dryer food drying machine
specifications of hot air fruit and vegetable dryer food drying machine
|
Model |
ZLHA-T-T1 |
ZLHA-T-T2 |
ZLHA-T-T4 |
ZLHA-T-T6 |
ZLHA-T-T8 |
||||
|
Model in YY0026-90 standard |
RXH-7-C |
RXH-14-C |
RXH-27-C |
RXH-41-C |
RXH-54-C |
||||
|
Number of doors |
1 |
2 |
2 |
3 |
4 |
||||
|
Overall dimension |
L*W*H(mm) 1500*1500*2300 |
L*W*H(mm) 2300*1500*2300 |
L*W*H(mm) 2300*2500*2300 |
L*W*H(mm) 2300*3500*2300 |
L*W*H(mm) 4500*2300*2300 |
||||
|
|
|
|
|
|
|
||||
|
Total weight(kg) |
480 |
1080 |
1520 |
1960 |
2400 |
||||
|
Input capacity |
60(kg/batch) |
120(kg/batch) |
240(kg/batch) |
360(kg/batch) |
500(kg/batch) |
||||
|
Electric voltage(V) |
220V /50Hz 1PH or 380V/50Hz 3PH |
||||||||
|
Motor power |
0.15(kW) |
0.3(kW) |
0.6(kW) |
0.9(kW) |
1.2(kW) |
||||
|
Fan Power |
0.45(kW) |
0.45(kW) |
0.45*2(kW) |
0.45*3(kW) |
0.45*4(kW) |
||||
|
Heating source |
9kW Electricity/ |
15kW Electricity/ |
30kW Electricity/ |
45kW Electricity/ |
60kW Electricity/ |
||||
|
|
10kg/h Steam |
18kg/h Steam |
36kg/h Steam |
60kg/h Steam |
80kg/h Steam |
||||
|
Steam pressure |
0.2-0.4Mpa@80~120°C inside the dryer, 0.4-0.8Mpa@120~140°C inside the dryer |
||||||||
|
Evaporation area |
7.1(m2) |
14.1(m2) |
28.3(m2) |
42.4(m2) |
56.6(m2) |
||||
|
Efficient Volume |
1.3(m3) |
2.6(m3) |
4.9(m3) |
7.4(m3) |
10.3(m3) |
||||
|
Wind volume(m3/h) |
1400 |
2800 |
5200 |
8000 |
13800 |
||||
|
Temperature range(°C) |
Steam: 50-140°C, max 150°C; Electricity: 50-250°C |
||||||||
|
Numbers of trolley(set) |
1 |
2 |
4 |
6 |
8 |
||||
|
Dimension of trolley |
L*W*H: 710*950*1510(mm) |
||||||||
|
|
|
||||||||
|
Numbers of tray(pcs) |
24 |
48 |
96 |
144 |
192 |
||||
|
Dimension of tray(mm) |
L*W*H: 460*640*45 or 460*640*30 |
||||||||
|
|
|
||||||||
|
Main Material |
Chamber & trolley & tray: SS304, exterior cover: SS201/ Carbon steel |
||||||||
|
Open doors |
Front |
||||||||
|
The hot air generator can be choose except electric: |
|||||||||
